'How to build a wind turbine' workshop

Shanti Griha SCORAIG 6-13th June 2009

See also video

John Whitfield, Jan Wentink, Denver Hornsby, Bukelwa Hornsby, John Wilson, Jupp Reichert, Hugh Piggott
more photos here

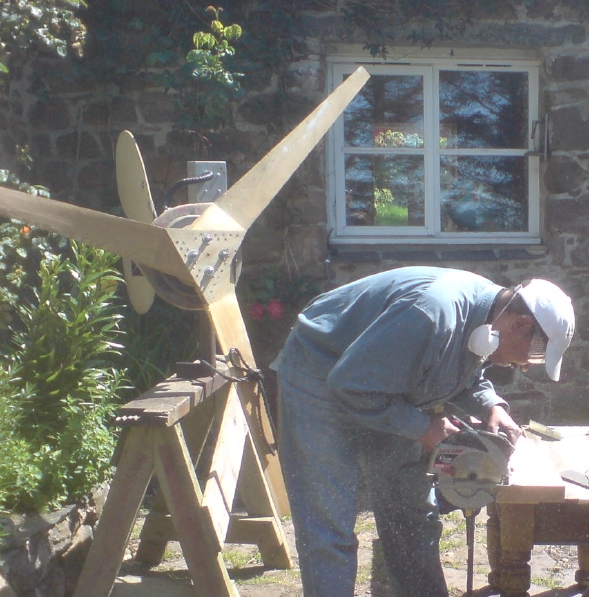

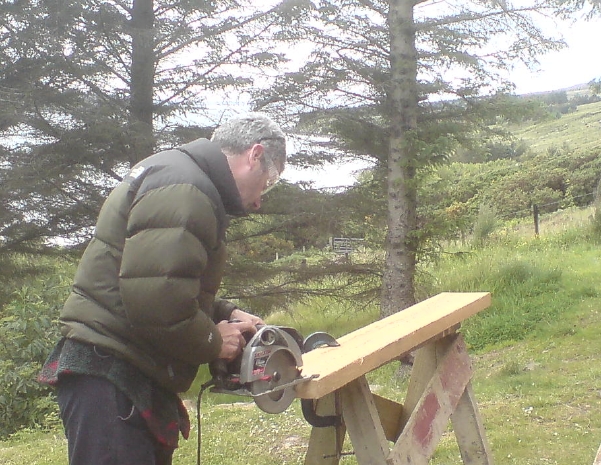

JC cuts a blade out

Jupp measured the drop

The Hornsby team welding.

Jan counts to 55 with 2 wires.

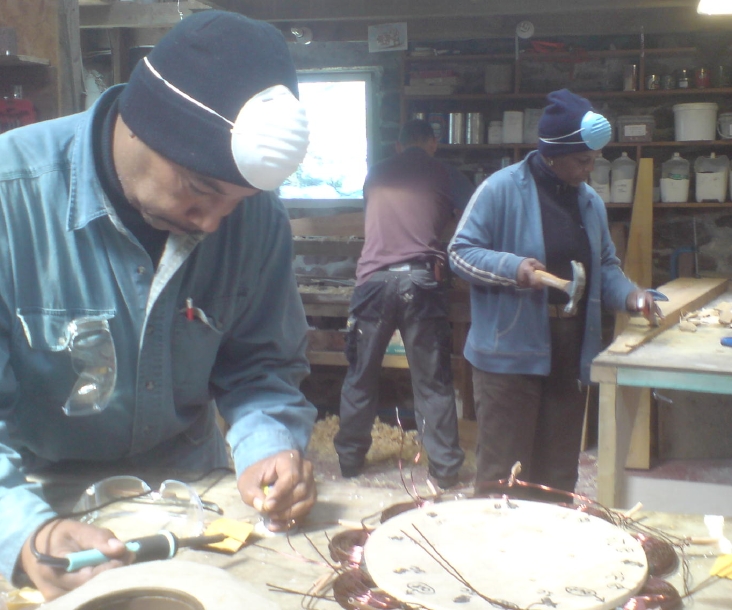

Bukelwa uses a cable tie to fish for the end of the electrical tap under the coil.

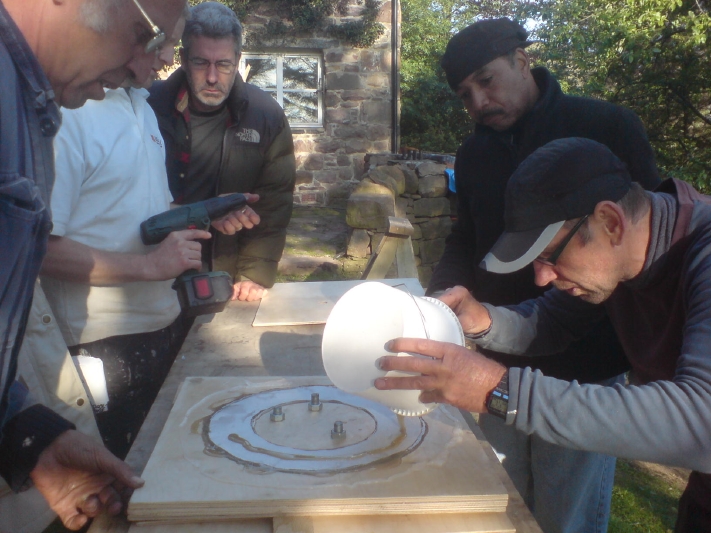

Casting a magnet rotor in the midges.

Holding the chisels very tightly.

John sets the stator on centre using a piece of wire.

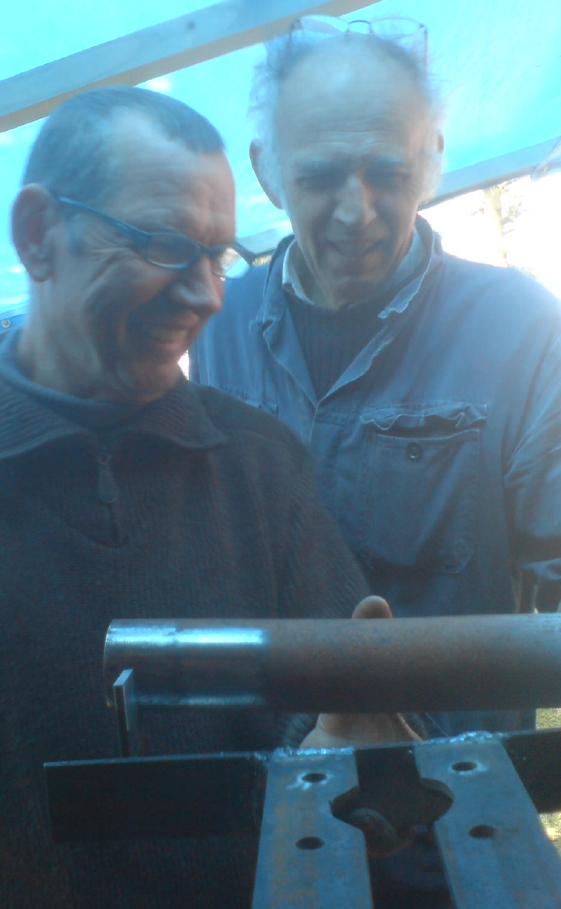

Jupp welds the tail hinge in place.

John looks for lumps and burrs.

The 1800 turbine from the previous workshop was a useful reference.

Making a heavier tower for the 3 metre turbine.

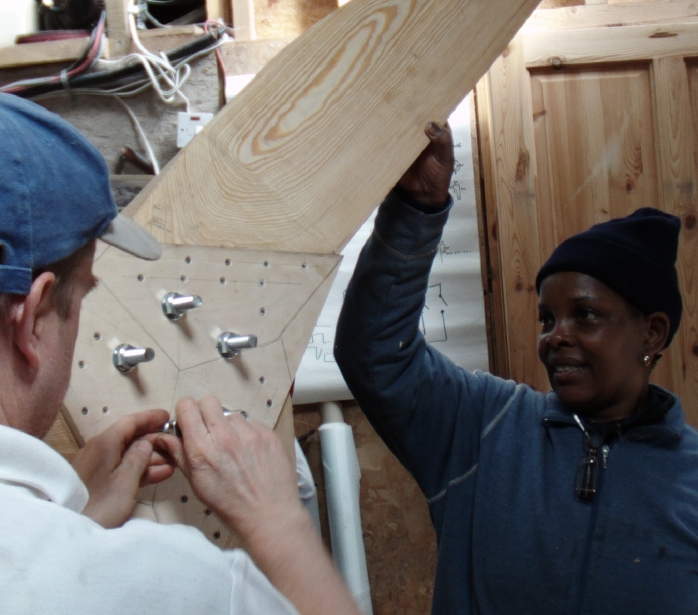

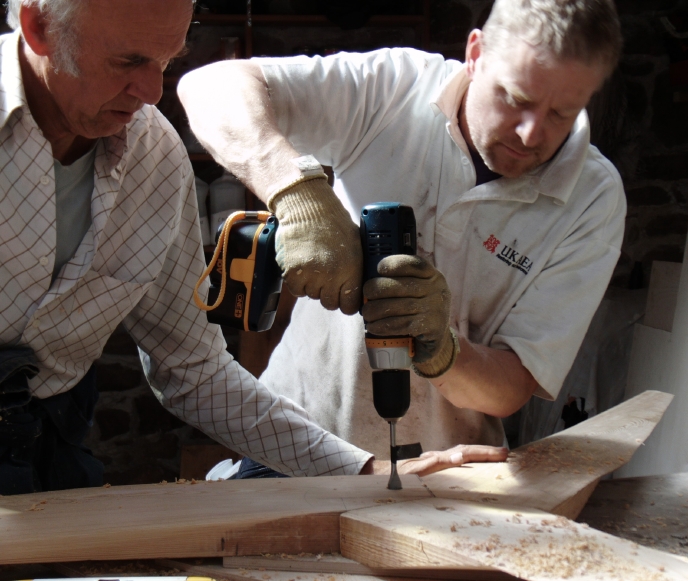

Drilling clearance holes in the blade assembly.

Going right down the field to near the AWP turbine.

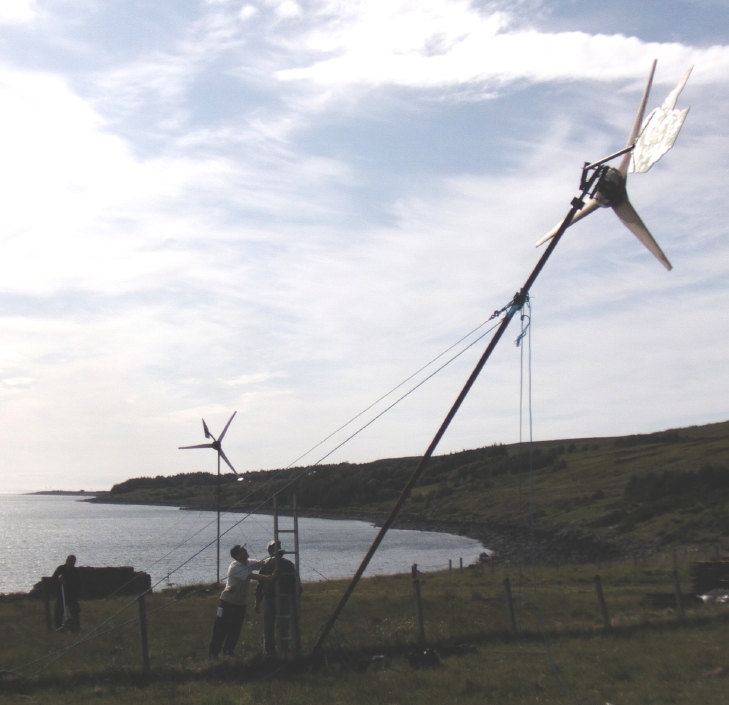

She flies.

Don't ask me why the spaceship is going down in the sea.  (It's complicated.)

Kathrin Cooper and Cathy Dagg.

Shanti Griha

More photos of the workshop are here
