Plans for building wind turbines from brakedrums are now available in 2 flavours:
UK and "North American"
---
The UK version is available from me and also from Picoturbine in the USA
It includes information suitable for North american readers.  This page is to clarify the differences and similarities
The "N American" version is taught by Robert Budd at workshops in Ontario.
and is based on the UK plans, modified for a larger brakedrum.
Here are some basic dimensions for the two versions.
There are diagrams below to help you identify what the dimensions mean.

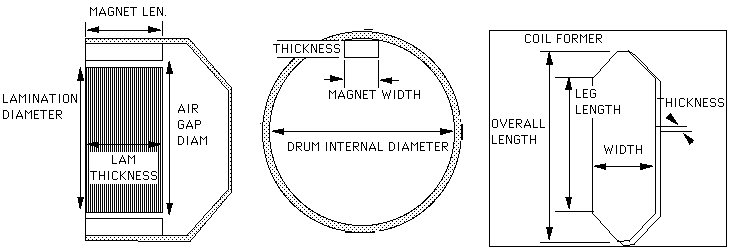

UK version N. American

Vehicle
Transit van
Ford 3/4 ton truck


(long wheelbase)
E or F 250 or 350

Internal diameter
254mm [10"]
306mm [12"]

number of magnets
20
16

Magnet length
64mm [2.5"]
76mm [3"]

width
32mm [1.25"]
51mm [2"]

thickness
20mm [3/4"]
25mm [1"]

Air gap diameter
212mm [8 5/16"]
251mm [9 7/8"]

lamination diameter
204mm [8"]
245mm [9 5/8"]

thickness
64mm [2.5"]
76mm [3""]


Coil former leg length
76mm [3"]
76mm [3"]

overall length
96mm [3.75"]
90mm [3.5"]

width
22mm [7/8"]
33mm [1 9/32"]

thickness
2.5mm [3/32"]
2.5mm [3/32"]

no. coils/ phase & total
10 & 30
8 & 24

Wire size
0.8mm diameter
0.7mm diameter


20awg
21

wire turns per coil
24
36

nominal voltage delta
12V
12V

star
24V
36V




There are also two different designs for the blades.  The "N American" blades are larger.
